reto PUMP

reto PUMP

Set for local control of a maximum of 2 pumps (without load part) with powerful cellular network control and battery-buffered power supply. Pump switching automatically, on site or remotely online via the data centre.

SKU: 53634-1-2-2 Categories: , , , , , , , , , , , , , , , , , , , , Tags: , ,

Description

Advantages and functions

Measuring, controlling, regulating

From small to large, the reto records, controls and regulates components such as pumps, valves, UV systems and other actuators locally or across stations.

Online remote control

Our datacenter is your online remote control centre! It allows you to control your system remotely and gain new insights into your system. The clear visualisation of measurement data and automatic logs simplify your everyday life.

Redundant communication

The reto connects to the data centre via cellular and wired networks. This ensures maximum station availability! The integrated SIM card and our managed.service offer the most user-friendly metering point operation on the market.

Reliable power supply

Power failures are seamlessly bridged over periods of 6 to 48 hours thanks to the integrated UPS with buffer batteries. The sophisticated system for overvoltage protection ensures uninterrupted station operation.

Interface talent

The reto ensures the connection and supply of sensors for level, pressure, flow, measuring weirs, pumps, valves, status/fault messages, water quality, etc.

Modular

The reto is a modular system, which is why it is modular and easy to expand. It is available in a compact control cabinet, for conversions and retrofits on mounting plates or as individual components.

Downloads

reto
Product information
HW 1.0 download

Additional Informations

Schnittstellen

3x universal inputs (0/4..20mA, 0..2/10V, digital, frequency, PWM, counter)
8x digital inputs (status, counter, timer)
8x analog inputs (0/4..20 mA)
1x RS485 interface with Modbus RTU/ASCII
1x RS232 interface
1x relay output
1x analog output (4..20 mA)
Expandable by a further 16 DI, 8 AI, 4 RO, 4 AO
Energieversorgung

Sensorversorgung

Permanent and switchable sensor supply (24 VDC)
Battery-buffered via UPS (7.2 – 48 Ah)
Steuerungsfähigkeit

Cross-station control, Local control
Übertragungsmodus

interval, interval + wakeup, live, online
Gehäuse

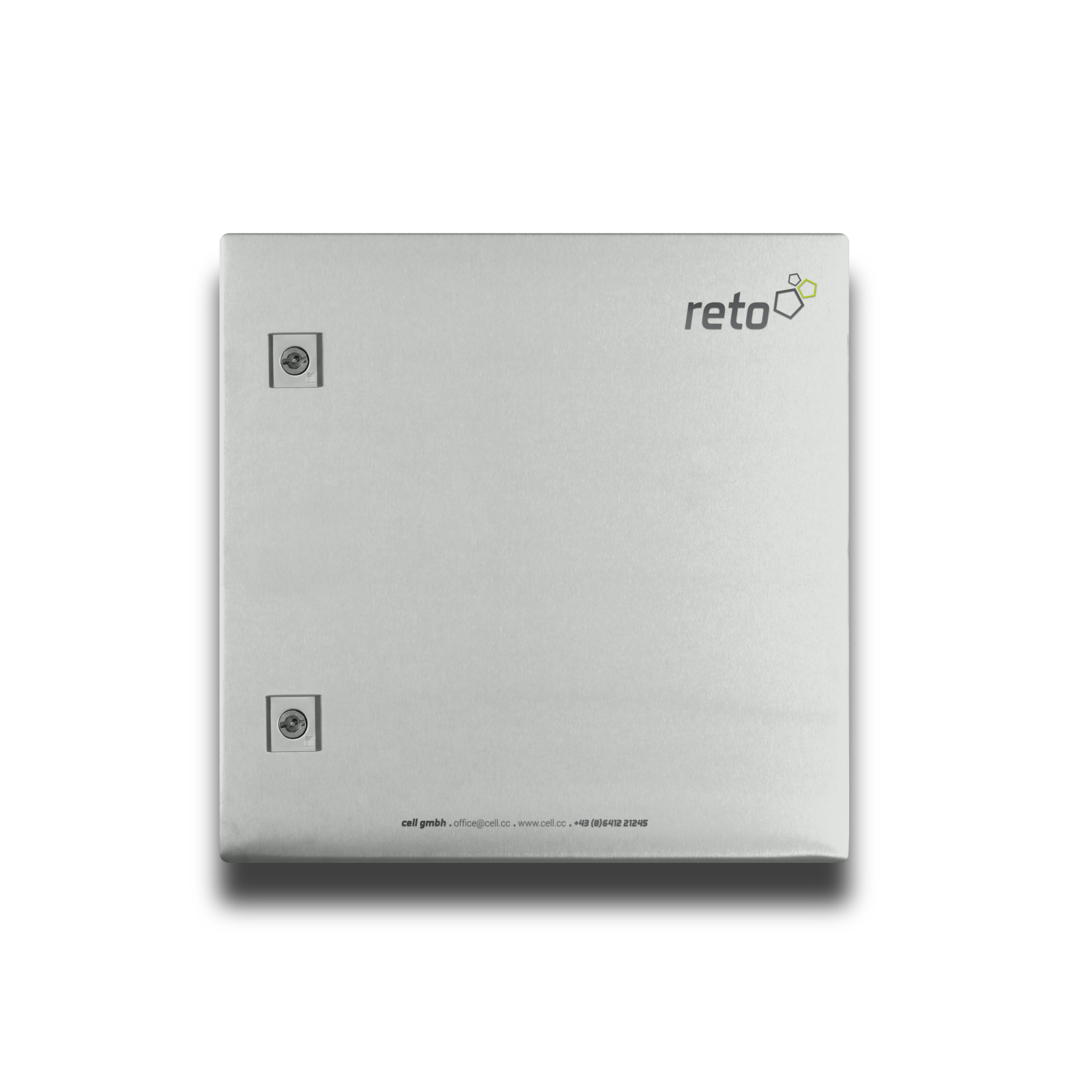

Powder-coated or stainless steel control cabinet 600 x 600 x 210 mm, protection class IP66
Integrated switch cabinet heating
Betriebsbedingungen

-20..+60 °C, 15..90 %rH, non-condensing
Messdatenspeicher

Local for 3,128 measuring cycles
Bedienung

Operating light
Optional display

reto device sets

Get started with ready-made solution packages

reto PUMP

Set for local control of a maximum of 2 pumps (without load part) with powerful cellular network control and battery-buffered power supply. Pump switching automatically, on site or remotely online via the data centre.

Learn More

Nothing suitable found?

We will advise you personally and put together an all-round package.

Personal consultation

Additional information

Schnittstellen

3x universal inputs (0/4..20mA, 0..2/10V, digital, frequency, PWM, counter)
8x digital inputs (status, counter, timer)
8x analog inputs (0/4..20 mA)
1x RS485 interface with Modbus RTU/ASCII
1x RS232 interface
1x relay output
1x analog output (4..20 mA)
Expandable by a further 16 DI, 8 AI, 4 RO, 4 AO
Energieversorgung

Sensorversorgung

Permanent and switchable sensor supply (24 VDC)
Battery-buffered via UPS (7.2 – 48 Ah)
Steuerungsfähigkeit

Cross-station control, Local control
Übertragungsmodus

interval, interval + wakeup, live, online
Gehäuse

Powder-coated or stainless steel control cabinet 600 x 600 x 210 mm, protection class IP66
Integrated switch cabinet heating
Betriebsbedingungen

-20..+60 °C, 15..90 %rH, non-condensing
Messdatenspeicher

Local for 3,128 measuring cycles
Bedienung

Operating light
Optional display
